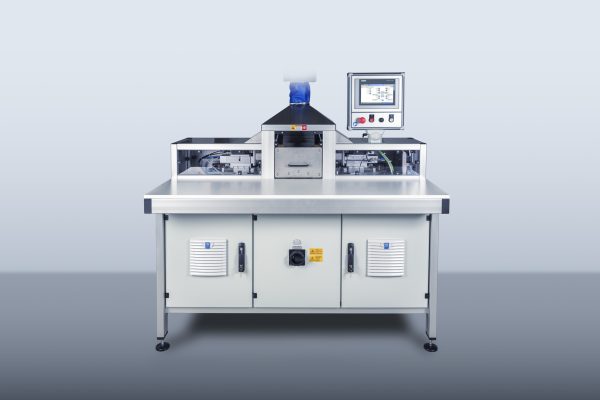

single machine of infrared fiber sealing, for laboratory or small quantities filter production

Infrared fiber sealing

Infrared fiber sealing

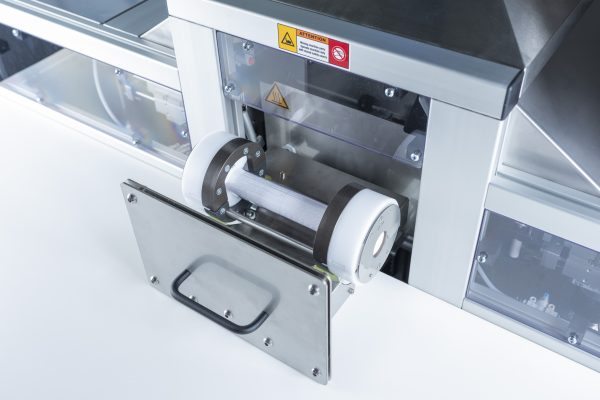

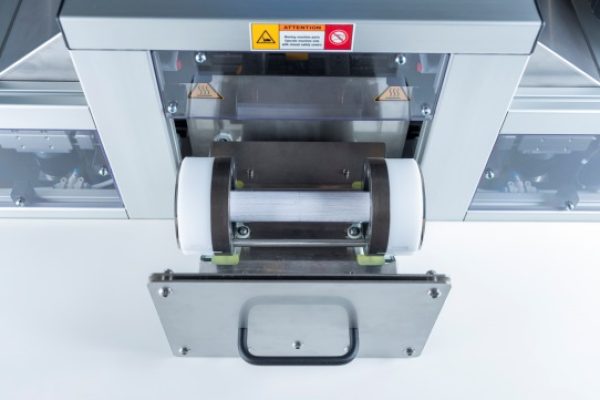

In this sealing process, the hollow fiber membranes are sealed exclusively without contact using infrared radiation and thus sealed. The sophisticated technologies work extremely precisely and accurately with camera support.

In addition to our automated alphaSEAL® production system for series production, Alpha Plan also offers variants for small quantities, e.g. for pre-series, prototypes or tests. The device can be adapted to your technologies, module sizes and production status/level.

In this sealing process, the hollow fiber membranes are sealed exclusively without contact using infrared radiation and thus sealed. Variants for small quantities, for pre-series, prototypes or tests. The device can be adapted to your technologies, module sizes and production status/level.
Sealing of hollow fiber membranes in preparation for further processing For sealing polysulfone (PSU) or polyethersulfone (PES) fibers, for small quantities
Pre-assembly: fiber bundle insertion, sealing & cap assembly machines

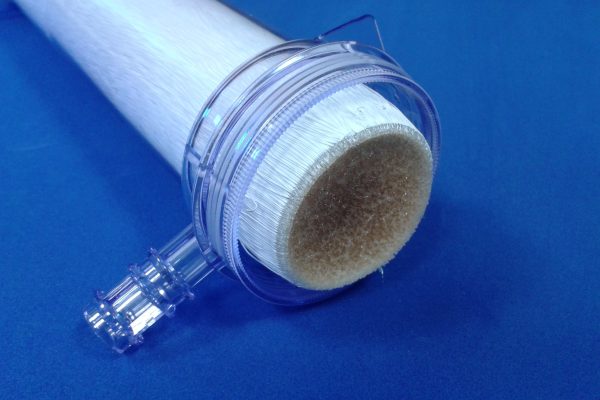

filter housing with hollow fiber after sealing treament
Sealing of hollow fiber membranes in preparation for further processing For sealing polysulfone (PSU) or polyethersulfone (PES) fibers, for small quantities

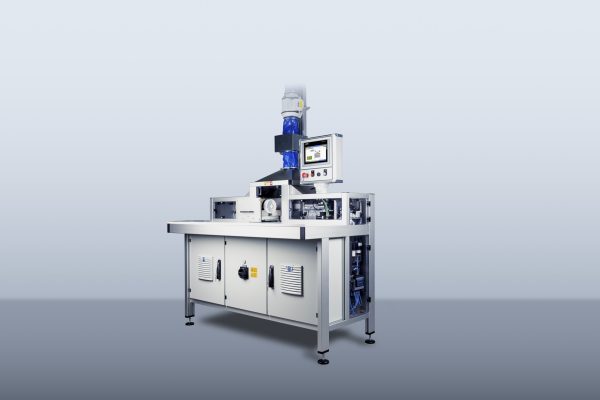

Laboratory infrared fiber sealing device for hollow fiber membranes
single machine of infrared fiber sealing, for laboratory or small quantities filter production

Areas of application

  • Sealing of hollow fiber membranes in preparation for further processing
  • For the closure of polysulfone (PSU) or polyethersulfone (PES) fibers
