Layout & Design

The layout is the first step to your production line.

In the process of conception and design of a manufacturing plant, we continuously coordinate the requirements with you and adapt the layout to the local conditions.

Modern software is used for the construction of the plants and for testing their functionality. With our many years of experience, we think technology, process and productivity together and thereby meet your high demands.

Sensor, die Ergonomie des Maschinendesigns

Quality

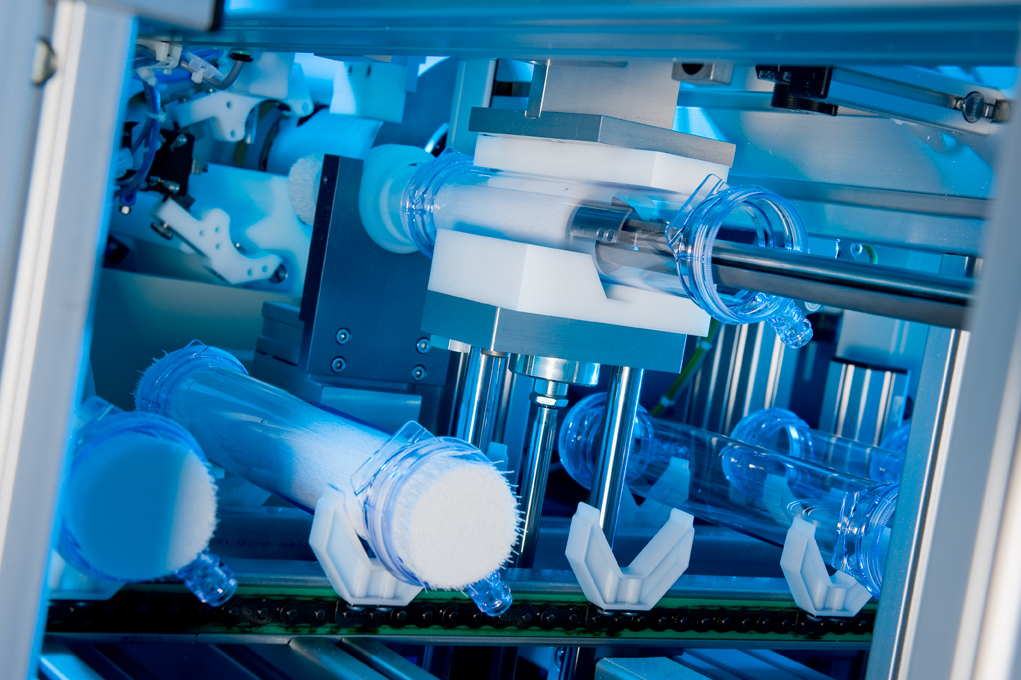

When constructing our assembly lines, we always pay attention to the ergonomics of the machine design. All Alpha Plan systems are CE certified.

Would you like to learn more?
Write to us! We are looking forward to your message.




    * required fields

    Please make sure you fill in all required fields, or alternatively contact us directly by email at vertrieb@alpha-plan.de.

    Alpha Plan GmbH
    Juri-Gagarin-Strasse 13A
    01454 Radeberg
    Germany

    Phone: +49 3528 431 30
    Fax: +49 3528 431 330
    E-Mail: kontakt@alpha-plan.de

    Twitter Facebook Youtube Linkedin Xing Weixin Instagram Weibo

    Gas-Transfer-Module

    Anwendungsbeispiele:
    • Sauerstoffanreicherung / Karbonisierung von Flüssigkeiten
    • Entgasung von Flüssigkeiten
    • Bioreaktor-Oxygenatoren
    Art. Nr. Produkt Abmessungen (Ø/Länge) m/o Anschlüsse Membran Anschlüsse Innere Oberfläche Äußere Oberfläche Intrakapillar-volumen Extrakapillar-volumen
    0510142 GTM S 12 / 60 mm PMP FLC 80 cm² 160 cm² 0.6 ml 1.3 ml
    0510143 GTM M 21 / 120 mm PMP FLC 0.10 m² 0.19 m² 6 ml 17 ml
    0510144 GTM L 26 / 120 mm PMP FLC 0.15 m² 0.29 m² 9 ml 26 ml
    MWCO – Molecular Weight Cut-Off; ICS – Intra Capillary Space; ECS – Extra Capillary Space; TMP – Trans-membrane pressure, FLC – Female Luer Connector; Ø – Gehäusedurchmesser; Länge – Gehäuselänge ohne Endkappen und Anschlüsse
